3HP water-cooled 4T

products

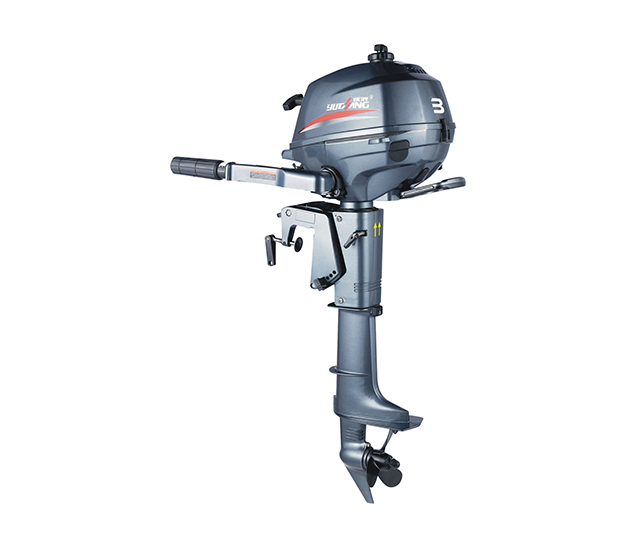

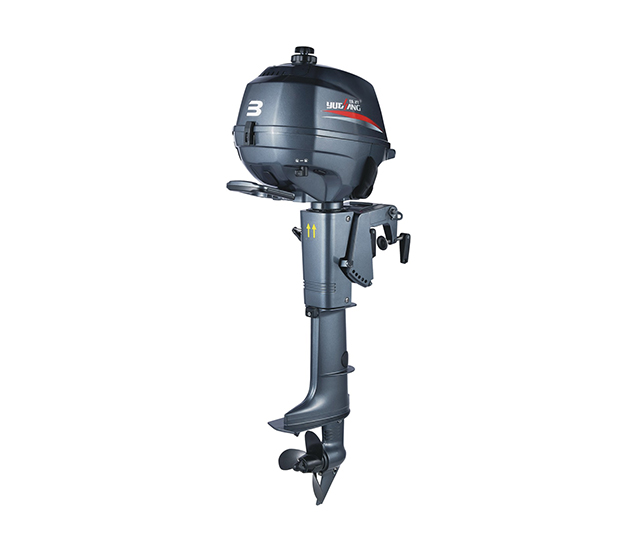

Model	3HP Outboard Engine Series (Water Cooled)
Demension	Overall Length:623mm(24.5in) Overall Width:345mm(13.5in) Overall Height L:1021mm(40.1in)
Weight	17Kg(37.4lbs)
Full Throttle Operating Range	5250-5750r/m
Maximum Output	1.8kw/3hp
Ldling Speed	1900±100r/m
Type	Four Stroke
Displacement	72cc
Bore x Stroke	54x31.5mm(2.12x1.24in)
Lgnition System	TCI
Spark Plug	NGK BR7HS-10
Spark Plug Gap	0.6-0.7mm
Control System	Tiller Handle
Starting System	Manual
Starting Carburation System	Choke Valve
Gear Position	Forward-Neutral
Gear Ratio	2.08(27:13)
Trim And Tilt System	Manual Tilt
Recommended Fuel	Unlead Gasoline
Gear Oil	0.075L
Fuel Tank Capacity	0.9L
Torque	6.5N.m/2500rpm
Propeller	7(1/2)x7
Fuel Consumption	1.8L/h
Packing Size	112x45x49cm
