3HP water-cooled 2T

products

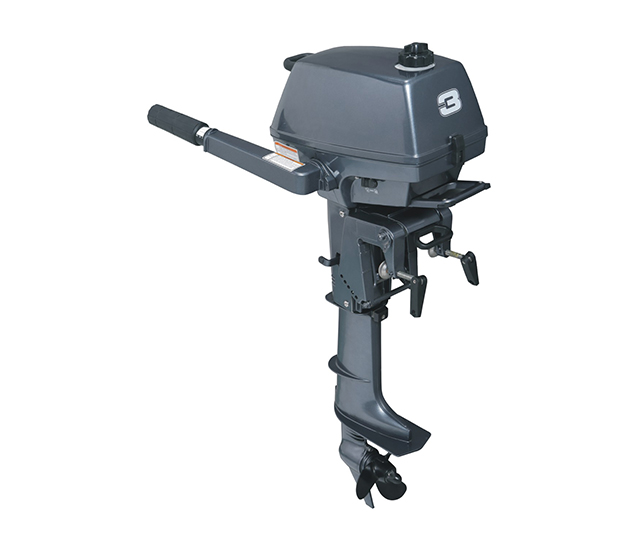

Model	3HP Outboard Engine Series (Water Cooled)
Demension	Overall Length:628mm(24.7in) Overall Width:289mm(11.3in) Overall Height S:997mm(39.2in) Overall Height L:1124mm(44.2in)
Weight	S:16.5Kg(27.5lbs) L:17Kg(37.4lbs)
Full Throttle Operating Range	4500-5500r/m
Maximum Output	2.2kw/3hp
Ldling Speed	1200±50r/m
Displacement	70cc
Bore x Stroke	46x42mm(1.81x1.65in)
Lgnition System	CDI
Spark Plug	NGK BR7HS-10
Spark Plug Gap	0.9-1.0mm
Control System	Tiller Handle
Starting System	Manual
Starting Carburation System	Choke Valve
Gear Position	Forward-Neutral
Gear Ratio	2.08(27:13)

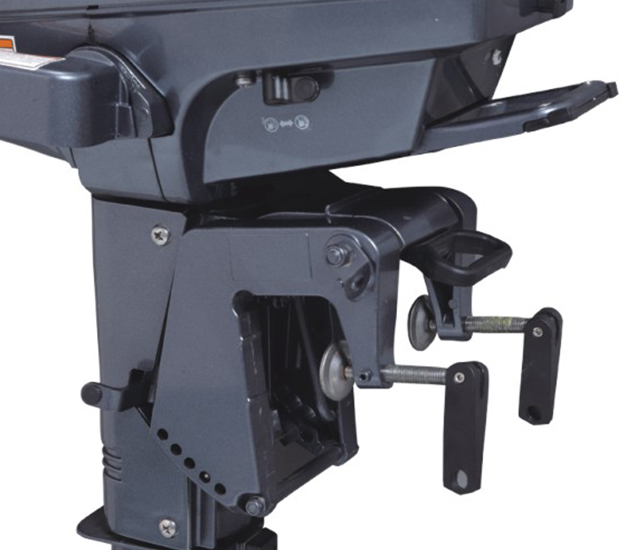

Trim And Tilt System	Manual Tilt
Recommended Fuel	Unlead Gasoline
Recommended Engine Oil	2-Stroke Outboard Motor Oil
Blended Fuel Oil Ratio	50:1
Gear Oil	0.075L
Fuel Tank Capacity	1.4L
Torque	6.3N.m/2500rpm

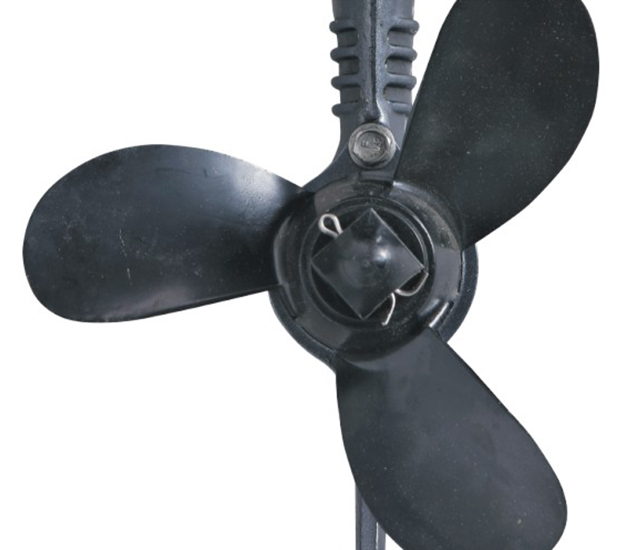

Propeller	7(1/2)x7
Fuel Consumption	1.5L/h
Packing Size	124x51x35cm
